| ชื่อแบรนด์: | AIKE POWER |
| เลขรุ่น: | AY625 |
| MOQ: | 1 |
| ราคา: | USD |
| ความสามารถในการจําหน่าย: | 20 set/m |

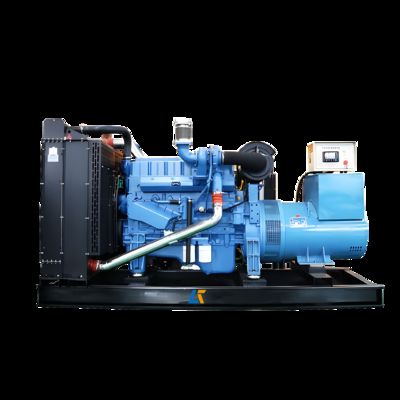

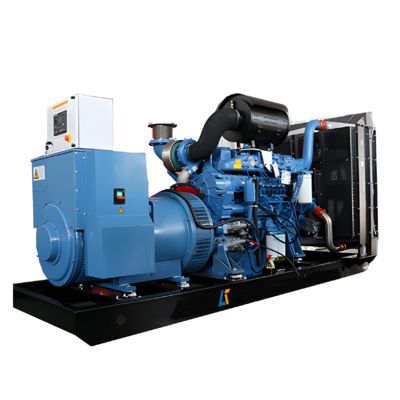

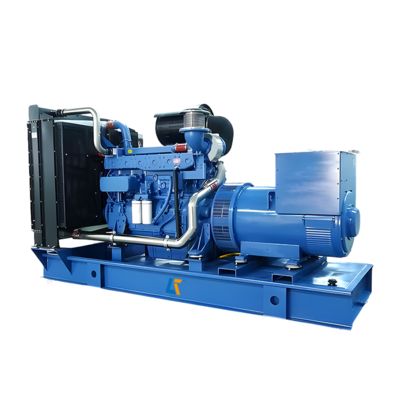

Yuchai power generator set with high voltage YC6TD780-D30 engine. Available in 50HZ/1500RPM configuration with adjustable voltage options: 380/220V, 400/230V, 415/240V. Also available in 60HZ/1800RPM with voltage options: 220/127V, 380/220V, 440/254V.

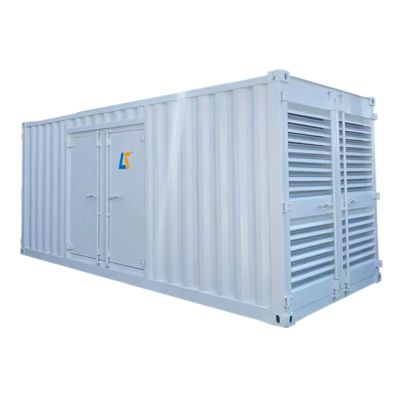

Available in multiple configurations: Open Type, weatherproof type, soundproof type, and trailer type.
| Generator Set | ||
|---|---|---|
| Genset Model | AY625 | |
| Rating Power (KW/KVA) | 450/562 | |
| Standby Power (KW/KVA) | 500/625 | |
| Rating Ammeter (A) | 816 | |
| Diesel Engine | ||
| Engine Model | YC6TD780-D30 | |
| Prime Power (KW/KVA) | 356/445 | |
| Number of Cylinders | 6 cylinders in line | |
| Bore * Stroke (mm) | 152 * 180 | |
| Displacement (l) | 19.598 | |
| Compression Ratio | 14:1 | |
| Governor Type | Electric start | |
| Rated RPM | 1500 | |
| Exhaust System | ||
| Exhaust Gas Flow (m³/min) | 33 | |
| Max. Exhaust Gas Temperature (℃) | 550 | |
| Fuel System | ||
| Rating Fuel Consumption (l/h) | 117 | |
| 75% Load Fuel Consumption (l/h) | 87.75 | |
| Dimensions & Weight | ||
| Generator Set Dimensions (L*W*H mm) | 3303 * 1500 * 2000 | |
| Generator Set Net Weight (kg) | 4130 | |
