| ชื่อแบรนด์: | AIKE POWER |
| เลขรุ่น: | AY625 |
| MOQ: | 1 |
| ราคา: | USD |
| ความสามารถในการจําหน่าย: | 20 set/m |

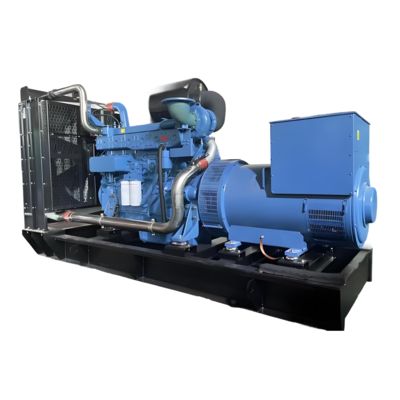

Yuchai power generator set with high voltage YC6TD780-D30 engine. Available in 50HZ/1500RPM configuration with adjustable voltage options: 380/220V, 400/230V, 415/240V. Also available in 60HZ/1800RPM with voltage options: 220/127V, 380/220V, 440/254V.

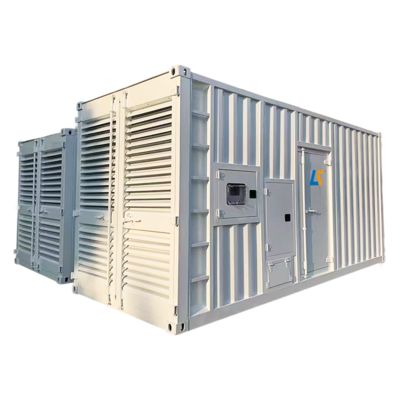

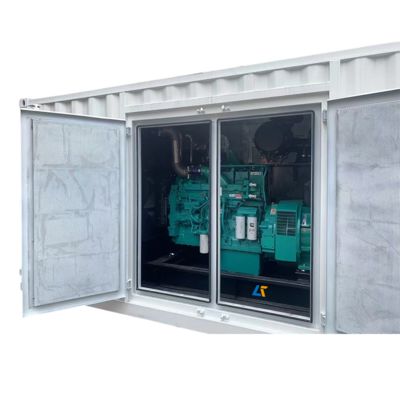

Available configurations: Open Type, weatherproof type, soundproof type, and trailer type. Optional ATS brands include ABB, Schneider Electric, SOCOMEC & Delixi. Controller options: UK Deepsea, Czech ComAp, Denmark DEIF, or Smartgen China.
| Generator Set Specifications | ||
|---|---|---|
| Genset Model | AY625 | |
| Rating Power (KW/KVA) | 450/562 | |
| Standby Power (KW/KVA) | 500/625 | |
| Rating Ammeter (A) | 816 | |
| Diesel Engine Specifications | ||
| Engine Model | YC6TD780-D30 | |
| Prime Power (KW/KVA) | 356/445 | |
| Standby Power (KW/KVA) | 382/478 | |
| Cylinder Configuration | 6 cylinders in line | |
| Bore × Stroke (mm) | 152 × 180 | |
| Displacement (l) | 19.598 | |
| Compression Ratio | 14:1 | |
| Governor Type | Electric start | |
| Rated RPM | 1500 | |
| Exhaust System | ||
| Exhaust Gas Flow (m³/min) | 33 | |
| Max. Exhaust Gas Temperature (℃) | 550 | |
| Max. Exhaust Back Pressure (KPA) | 10 | |
| Air Intake System | ||
| Aspiration Type | Turbocharged intercoolant | |
| Max. Intake Depression (KPA) | 12 | |
| Combustion Air Volume (m³/min) | 33 | |
| Fuel System | ||
| Rating Fuel Consumption (l/h) | 117 | |
| 75% Full Fuel Consumption (l/h) | 87.75 | |
| Lubrication System | ||
| Total Oil Capacity (l) | 21 | |
| Max Permissible Oil Temp (℃) | 97 | |
| Oil Pressure at Rated RPM (KPA) | 345-413 | |
| Cooling System | ||
| Total Coolant Capacity (l) | 10 | |
| Max. Temperature of Coolant (℃) | 550 | |
| Fan Cooling Air Flow (m³/min) | 125 | |
| Alternator Specifications | ||
| Alternator Model | HCI544E | |
| Rating Voltage (V) | 400/230 | |
| Rating Capacity (KW/KVA) | 16/20 | |
| Efficiency (%) | 87.5% | |
| Power Factor | 0.8 | |
| Exciting Type | Brushless self-exciter, AVR | |
| Voltage Regulation | ±0.5% | |
| No. of Phase | 3 phase 4 wire | |
| Enclosure Class | IP23 | |
| Class of Insulation | H | |
| Battery Specifications | ||
| Rating Capacity (AH) | 2 × 80AH 12V | |
| Dimensions & Weight | ||
| Generator Set Dimensions (L×W×H mm) | 3303 × 1500 × 2000 | |
| Generator Set Net Weight (kg) | 4130 | |
A: Yes, we provide OEM services.
A: 30% T/T in advance, 70% balance when receiving B/L copy, or 100% irrevocable L/C at sight.
A: Approximately 15-25 days after receiving advance deposit or original L/C.
A: We are ISO certified and can apply for country-specific certifications including SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, and others.
A: One year or 1200 running hours (whichever occurs first). During warranty, we supply free replacement for easily damaged parts (excluding incorrect operation). After warranty, we provide cost spare parts for maintenance.
